Replica Pedalboard Project

Talk about musical equipment, guitars, drums, bass, synths anything.

Moderators: Randy Perry, The Flying Dutchman, Stiltzkin, skezza, Trigger

User avatar
TheMrAxeman
Mass Poster
Posts: 534
Joined: Tue Oct 13, 2009 1:49 am
Location: Dallas, TX
Contact:

Re: Replica Pedalboard Project

Post by TheMrAxeman »

Paul Wolfe wrote:You're going to remove the guts from the original pedals for this project? I'd like to see the "work in progress" pics.

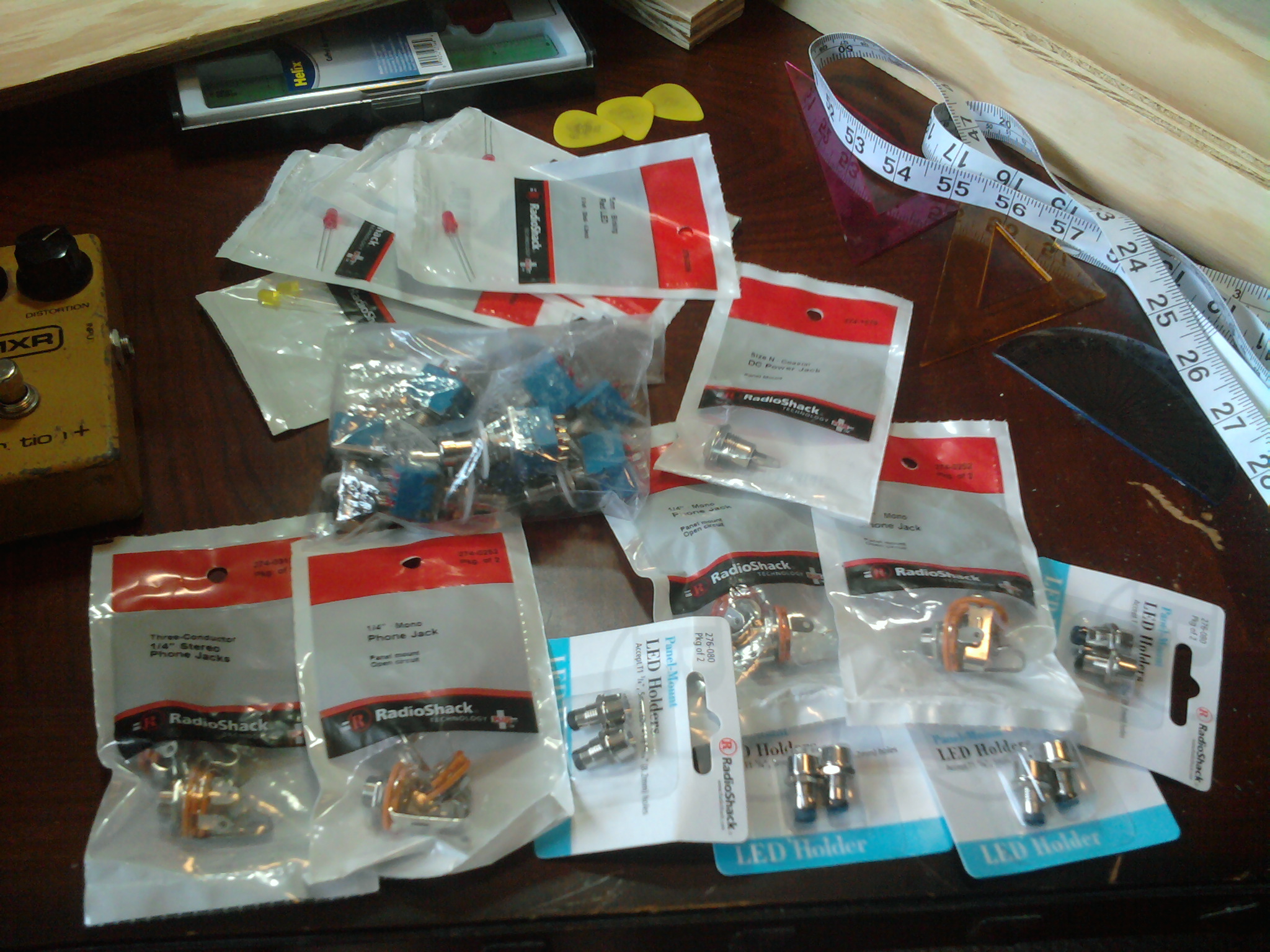

Yeah I will and sorry i couldnt find my phone charger yesterday to take a pic, but i found it about an hour ago and will post some pics later today. i havent wired anything yet but ive got all the switches, LEDs, jacks, LED holders, etc... All i need to do is solder and get sheet metal, then from there all that will be done to it is cosmetic changes(painting, boss style switches) also i do not have all the pedals for the board, but will get them after i finish it
Wanna trade boots? email randyrhoadsboots@gmail.com
User avatar
TheMrAxeman
Mass Poster
Posts: 534
Joined: Tue Oct 13, 2009 1:49 am
Location: Dallas, TX
Contact:

Re: Replica Pedalboard Project

Post by TheMrAxeman »

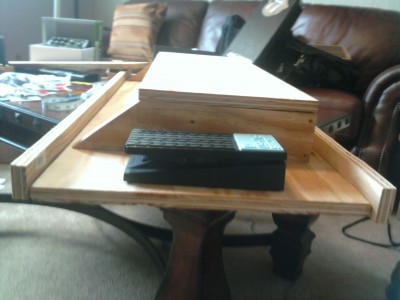

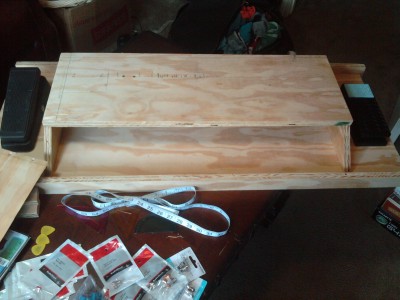

it looks way too tall because the top is wood now instead of sheet metal, the slanted piece is sitting to the left of the pedalboard because i just unscrewed everything for when i get the sheetmetal, i tried to place it on there but it kept sliding off :x
Attachments
2011-03-17 14.48.35.jpg
2011-03-17 14.48.50.jpg
2011-03-17 14.49.13.jpg
2011-03-17 14.50.13.jpg
Wanna trade boots? email randyrhoadsboots@gmail.com
Paul Wolfe
Mass Poster
Posts: 5272
Joined: Mon Mar 20, 2006 10:19 am

Re: Replica Pedalboard Project

Post by Paul Wolfe »

This is looking good... how far along is it now?
User avatar
TheMrAxeman
Mass Poster
Posts: 534
Joined: Tue Oct 13, 2009 1:49 am
Location: Dallas, TX
Contact:

Re: Replica Pedalboard Project

Post by TheMrAxeman »

Paul Wolfe wrote:This is looking good... how far along is it now?
just about to get sheet metal for it...havent had time lately to work on it :(
it still looks the same as in the pictures above your post
Wanna trade boots? email randyrhoadsboots@gmail.com
